| Connects to Microphone Jack of radio (RJ45) Rx audio from 3.5mm speaker jack on rear of radio. |
REM-4501 $45 |
Kenwood Mobile Radio TM-251, TM-255, TM-261A, TM-261EJ, TM-271A, TM-271E, TM-451, TM-455, TM-461A, TM-641, TM-642, TM-732, TM-733, TM-741, TM-742A(D), TM-941, TM-942, TM-D700A, TM-D700E, TM-G707A, TM-G707E, TM-G708A (K), TM-V7A, TM-V7E, TM-V71A, TM-V71E |
| Connects to Microphone Jack of radio (RJ45) Rx audio from Mic Jack pin 2. |
REM-4502 $30 |
Kenwood Mobile Radio Various models may include TM-261, TM461, TM-641, TM-732, TM-741, TM-742, TM-941, TM-942. Not verified. |
| REM-4464 $30  |
Kenwood
Portable Radios TH-21BT, TH-22, TH-25, TH-26, TH-27, TH-28, TH-31AT, TH-31BT, TH41-AT, TH41-BT, TH-42A/ 42AT/ 42E, TH-45, TH-46, TH-47, TH-48, TH-55, TH-75, TH-77, TH-205, TH-215, TH-225, TH-235A/ 235E, TH-315, TH-415,TH-D7A/ D7E/ D7AG, TH-G71A, TH-F6A, TH-F7E, TH-K2AT/ K2E/ K2ET, TH-K4AT/ K4ET |
|
| 13 Pin DIN Plug Opto isolated cable. Provides COR (m lead) Does not mute local
microphone |
REM4487 $85 |
Kenwood TS-440, TS-711, TS-811, TS-940 |
| 13 Pin DIN Plug Simple VAD cable. Does not provide COR (m lead) Does not mute local microphone |
REM4489 $45 |
Kenwood TS-440, TS-711, TS-811, TS-940 |
| 13 Pin DIN Plug Opto isolated cable. Provides COR (m lead) |
REM4488 $85 |
Kenwood TS-140, TS-450, TS-570S, TS-570D, TS-690, TS-790, TS-850, TS-870, TS-950SDX, TS-2000, TS-2000X, TS-B2000 |
| 13 Pin DIN Plug
Simple VAD cable. Does not provide COR (m lead) |
REM4490 $45 |
Kenwood TS-140, TS-450, TS-570S, TS-570D, TS-690, TS-790, TS-850, TS-870, TS-950SDX, TS-2000, TS-2000X, TS-B2000 |
| 13 Pin DIN Plug Main Band Tx & Rx Opto Isolated Cable. Provides COR (m lead's) for both bands. TS-950SDX must use VAD for Sub Band |
REM-4498 $140 |
Kenwood TS-2000, TS-2000X, TS-B2000, TS-950SDX
|
| 13 Pin DIN Plug Sub Band Only TS-950SDX must VAD |
REM-4499 $85 |
Kenwood TS-2000, TS-2000X, TS-B2000, TS-950SDX |
| 6 pin mini DIN, packet connector as adopted by Kenwood, Icom, and Yaesu Simple VAD cable. Does not provide COR (m lead) |
REM-4451 $45 |
Icom IC-207H, IC-208H, IC-703, IC-706 mk2, IC-746 Pro, IC-910H, IC-2720H, IC-2725E, IC-2800H, IC-2820, IC-7000, ID-800H. Kenwood TM-251, TM-255, TM-271A, TM-271E, TM-451, TM-455, TM-733, TM833, TM-D700A, TM-D700E, TM-G707A, TM-G707E, TM-V7A, TM-V7E, TM-V708A(k), TM-V71A, TS-480HX, TS-480SAT. Vertex/Yaesu FT-100, FT-757GXII, FT-817ND, FT-840, FT-847, FT-857D, FT-890, FT-897D, FT-900, FT-950, FT-1500M, FT-3000M, FT-7100M, FT-7800R, FT-8000, FT-8100R, FT-8500, FT-8800R, FT8900R Azden PCS 9000? |
| 6 pin mini DIN, packet connector as adopted by Kenwood,
Icom, and Yaesu
Opto isolated cable. Provides COR (m lead) |
REM4491 $65 |
Icom IC-207H, IC-208H, IC-703, IC-706 mk2, IC-746 Pro, IC-910H, IC-2720H, IC-2725E, IC-2800H, IC-2820, IC-7000, ID-800H. Kenwood TM-251, TM-255, TM-271A, TM-271E, TM-451, TM-455, TM-733, TM833, TM-D700A, TM-D700E, TM-G707A, TM-G707E, TM-V7A, TM-V7E, TM-V708A(k), TM-V71A, TS-480HX, TS-480SAT. Vertex/Yaesu FT-100, FT-757GXII, FT-817ND, FT-840, FT-847, FT-857D, FT-890, FT-897D, FT-900, FT-950, FT-1500M, FT-3000M, FT-7100M, FT-7800R, FT-8000, FT-8100R, FT-8500, FT-8800R, FT8900R Azden PCS 9000? |
| 13 Pin DIN Plug, Icom wiring, VHF and UHF
Simple VAD cable. Does not provide COR (m lead) |
REM-4452 $45 |
Icom IC-706, IC-706mk2, IC-7000 |
| 13 Pin DIN Plug, Icom wiring, VHF and UHF
Opto isolated cable. Provides COR (m lead) |
REM-4492 $65 |
Icom IC-706, IC-706mk2, IC-7000 |
13 Pin DIN Plug, Icom wiring, HF and 50 MHz Simple VAD cable. Does not provide COR (m lead) |
REM-4453 $45 |
Icom IC-78, IC-703, IC-706, IC-706mk2, IC-718, IC-7000 |
| 13 Pin DIN Plug, Icom wiring, HF and 50 MHz
Opto isolated cable. Provides COR (m lead) |
REM-4493 $65 |
Icom IC-78, IC-703, IC-706, IC-706mk2, IC-718, IC-7000 |
8 Pin DIN Plug, Icom Wiring. HF and 50 MHz Simple VAD cable. Does not provide COR (m lead) Plugs into ACC1 jack on back of radio. |
REM-4454 $45  |
 Icom IC-707, IC-718, IC-726, IC-732, IC-735, IC-736, IC-737, IC-738, IC-746, IC-746PRO, IC-756, IC-761, IC-765, IC-775, IC-775DSP, IC-781, IC-910H, IC-970, IC-7400, IC-7800, IC-M700PRO, IC-M710, IC-M710RT, IC-M802 Also compatible with the following radios if used with the Icom OPC599 adapter Icom |
| 8 Pin DIN Plug, Icom Wiring. HF and 50 MHz
Opto isolated cable. Provides COR (m lead) Plugs into ACC1 jack on back of radio. |
REM-4494 $65 |
Icom IC-707, IC-718, IC-726, IC-732, IC-735, IC-736, IC-737, IC-738, IC-746, IC-746PRO, IC-756, IC-761, IC-765, IC-775, IC-775DSP, IC-781, IC-910H, IC-970, IC-7400, IC-7800, IC-M700PRO, IC-M710, IC-M710RT, IC-M802 Also compatible with the following radios if used with the Icom OPCxxx adapter Icom |
8 Pin DIN Plug, Icom Wiring. VHF and UHF Simple VAD cable. Does not provide COR (m lead) Plugs into ACC1 jack on back of radio. |
REM-4455 $45 |
Icom Also compatible with the following radios if used with the Icom OPCxxx adapter Icom
|
| 8 Pin DIN Plug, Icom Wiring. VHF and UHF
Opto isolated cable. Provides COR (m lead) Plugs into ACC1 jack on back of radio. |
REM-4495 $65 |
Icom Also compatible with the following radios if used with the Icom OPCxxx adapter Icom |
| Simple VAD cable. Plugs into the RJ45 Microphone Jack.
Only works with Icom radios that provide Rx audio in the mic jack.
7 foot long. |
REM-4428 $25
|
ICOM IC-281A, IC-281E, IC-281H, IC-703, IC-706, IC-706MK2, IC-706MK2G, IC-2000, IC-2000H, IC-2350H
|
| Simple VAD cable. Plugs into the RJ45 Microphone Jack and 3.5mm speaker jack. | REM-4438 $50 |
Icom IC-A110, IC-207H, IC-208H, IC-2100H, IC-2200H, IC-2710H, IC-2720H, IC-2800, IC-7000, IC-V8000, ID-800H as well as all radios listed under REM-4428 above. |
|
Plugs into the mic jack.
VAD |
REM-4434 $45
coming soon |
ICOM IC-751, IC-271, IC-45, IC-471, IC-120 8 Pin Round Connector Many Icom radios use this connector. This cable is compatible only with radios that have receiver audio available on pin 8. |
|
VAD |

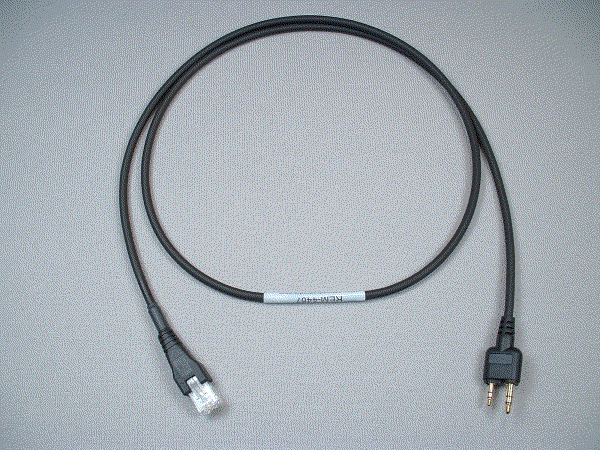

REM-4467
40" Straight Cord $55  |
Icom Portable Radios V8, T2H, T7H, T90A, W32A/W32E, T22A/T22E/T42A/T42E, 2GXA/2GXE/2GXAT/2GXET, 4GXA/4GXE/4GXAT/4GXET Q7A/Q7E requires OPC782 from Icom ADI Alinco |
| REM5 $49.00  |
REM-1492 $65.95 |
Yaesu Mobile Radios FT1500M, FT2600M, FT2800M |

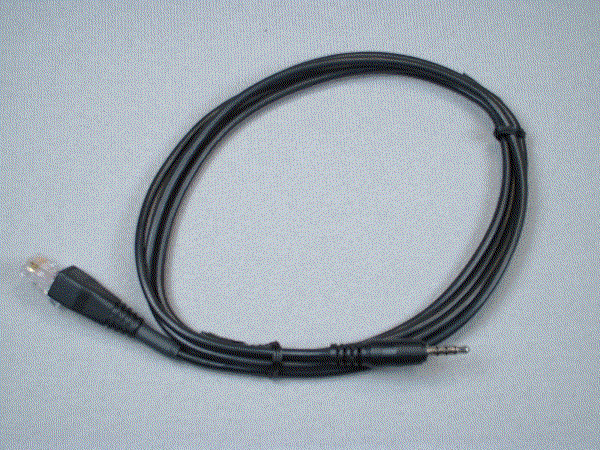

| REM-4466 $30  |
Vertex / Yaesu Portable Radios FT-10, FT-40, FT-50R, VX-10, VX-110, VX-150, VX210, VX300, VX400, VXF-1, VX-1R, VX-2R, VX-5R |
|
| REM-4474 $60 |
Vertex / Yaesu Portable Radios Vx-7R, VX-7RB, VX-7RS  |
