Motorola Mobile Radios

Spectra, Astro Digital Spectra, Spectra Plus,  and XTL5000

E+M Interface Cables

  REM-4418
$125







 XTL5000 Front Mount
XTL5000 Rear Mount

Plugs into J2 Rear Accessory Cable.
26 Pin D shaped, 4 rows of contacts.

COR
Both E and M lead signaling

Program radio so that VIP 1 Out provides COR signal. (Rx Unmute)

Spectra - Enable external PTT with jumper at JU500 on the command board.

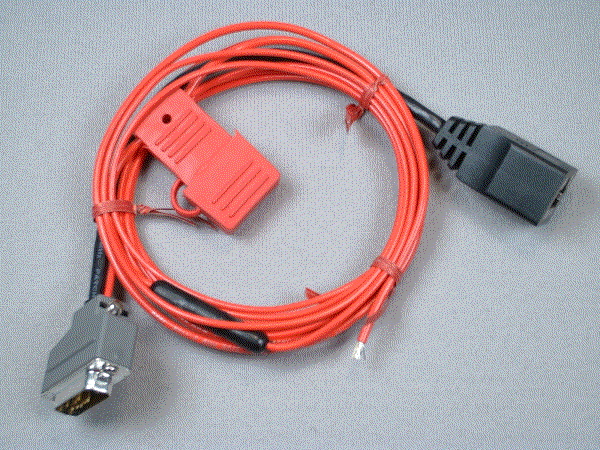

 REM-4405
$75
 Spectra Front Mount

DB15M plugs directly into connector located on rear of radio.

COR
Both E and M lead signaling
XTL5000 Front Mount
XTL5000 Rear Mount

DB15M (J3) Remote Control Cable Accessory Connector. Requires cable from Motorola.

COR
Both E and M lead signaling
  REM-4426
$50







 XTL5000 Rear Mount

DB25M plugs into
J6 Radio Operations Connector
Located on front of trunk mount unit.

VAD
PTT only, no COR provided.
