Motorola Mobile Radios

E+M Interface Cables



Program radio to  provide
COR Out on Pin 8 (i/o 5)
PTT In on Pin 21 (i/o 3)

 REM-4485
$125





 GM900,MC900,GM1100,GM1200,GM2000, MCX1200,MCS2000,MCX2000,MC2100



Both E and M lead signaling

RJ45 on both ends.

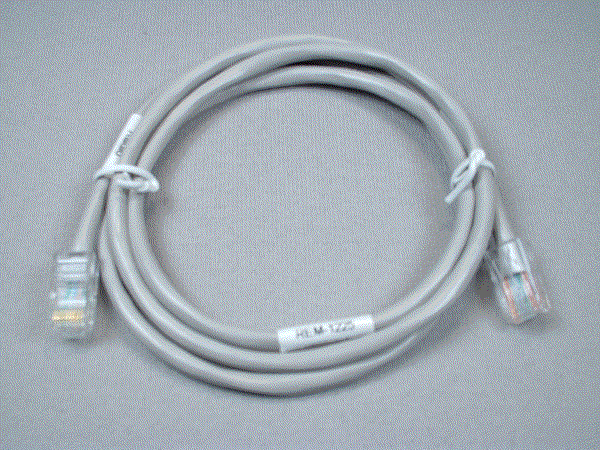

 REM-1225
$20
 Motorola Radius mobile radio adapter cable. Use with M1225, and other popular Motorola mobile radios with similar 8 pin mic jack. Including the CDM750, CDM1250, CDM1250LS, CDM1550, CDM1550LS, CDM1550LS+, CM140, CM160, CM200, CM300, CM340, CM360, EM200, EM400, GM140, GM160, GM300, GM328, GM338, GM338LS, GM339, GM340, GM350, GM360, GM380, GM398, GM399, GM600, GM640, GM660, GM900, GM1100, GM1200,  GM1280, GM2000, GM3188, GM3189, GM3688, GM3689, GTX LTR, GTX Privacy Plus, Maxtrac, M1225, M1225LS, M130, M208, M216, MC900, MC2100, MCS2000, MCX760, MCX780, MCX1200, MCX2000, PM400, PRO3100, PRO5100, PRO7100, SM50, SM120, and other radios compatible with the AAREX4617 telephone style handset. Connect radio mic jack to the routers E&M port. E Lead signaling only. Use VAD

Includes jumpers for Internal speaker and emergency switch.

Program radio to provide COR out on pin 8

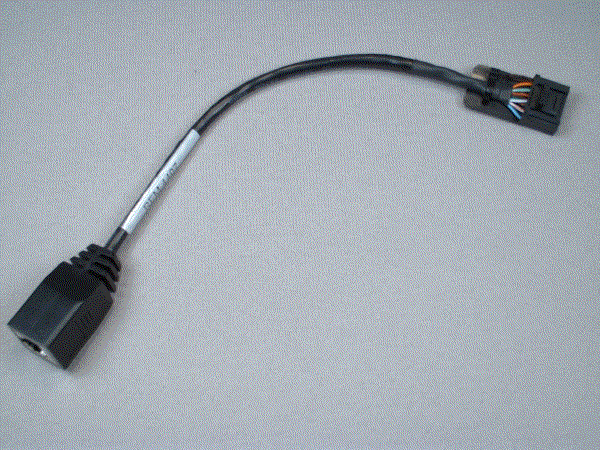

 REM-4407
$65
 Most Motorola mobiles with 16 pin accessory connector.

Maxtrac, Radius M100, M120, M130, M206, M208, GM300, SM50, SM120, Sportbase, M1225

Also compatible with Motorola GM350, GM600, GM950, MCX600, and MAX638 mobiles, but you must first cut the (easily accessible) jumper in our cable between pins 15 and 16.

Both E and M lead signaling

Program radio to provide COR out on pin 8

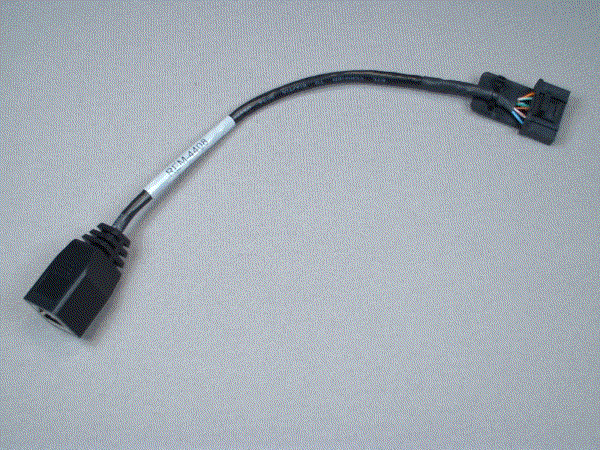

 REM-4408
$65
 Motorola Mobiles with 20 pin accessory connector.

CDM750, CDM1250, CDM1550, PRO3100, PRO5100, PRO7100, GM340, MCX760, MCX780

Possibly also works with GM3688 and MTM700.

Both E and M lead signaling

Includes emergency switch jumper. Remove jumper for use with CP400.

Program radio to provide COR out on pin 12

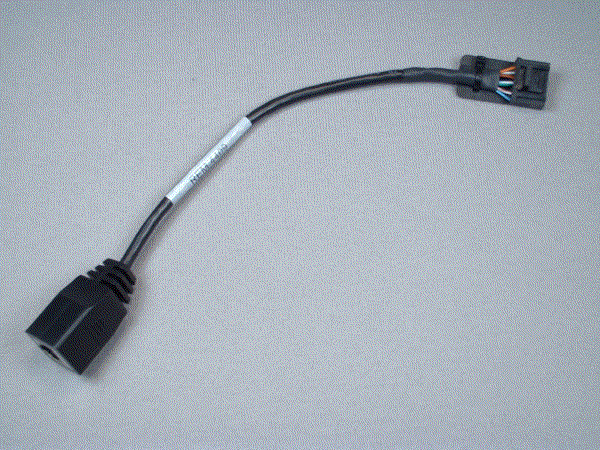

 REM-4409
$65
 Motorola GTX,LCS2000, and CP400 mobiles

16 pin accessory connector.

Both E and M lead signaling
Program radio to provide COR out on pin 8 REM-4482
$65		 Motorola CM200, CM300, GM3188 mobiles

16 pin accessory connector.

Both E and M lead signaling
