E&M Interface Cables

Including Cellular and Nextel / iDenŽ

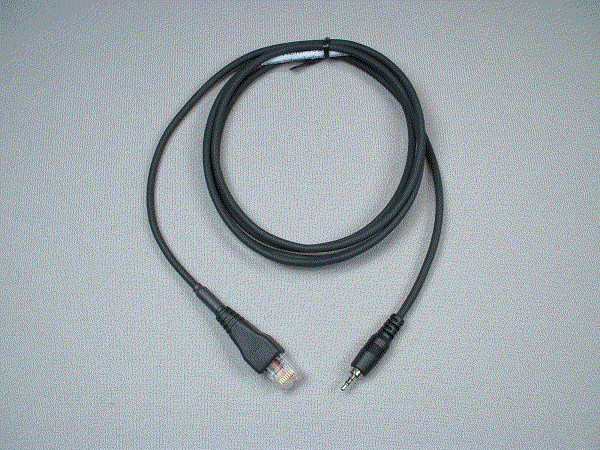

6' Cable with 3 conductor 2.5mm plug with shroud on one end, and an RJ45 on the other.

Use with the REM-621 Tx audio attenuator.

Nextel Falcon Series

iDen i30sx, i35s, i55sr, i58sr, i60c, i85s, i88s,  i90c, i95cl, i205, i265, i275, i305, i315, i325, i325 IS, i355, i355EVI, i530, i560, i570, i605, i710, i730, i733, i736, i760, i830, i836, i850, i860, i870, i920, i930
BlackBerry 6510, BlackBerry 7100i, BlackBerry 7510, BlackBerry 7520, and 2004 NASCAR Nextel Cup Series Driver Phones.
(And others?)
Includes Tx audio attenuator built in.

Phone specific plug on one end, RJ45 female on the other. 40" Long. Use standard CAT5 jumper to connect to routers E&M port.

Nextel Falcon Series

Same radios supported as above.

6' Cable with RJ45 and 2 pin Speaker plug on one end, and an RJ45 on the other.



For use with Nextel Hard Install Kits

NNTN4846 Car Kit Base
iDen i205, i305, i315, i325, i325IS, i355, i530, i560, i570, i605, i710, i730, i733, i736, i830, i850, i860

NNTN4744 Car Kit
iDen i205, i265, i275, i305, i315, i325, i325IS, i355, i355EVI, i530, i560, i570, i710, i730, i733, i736, i830, i836, i850, i860
(And others?)

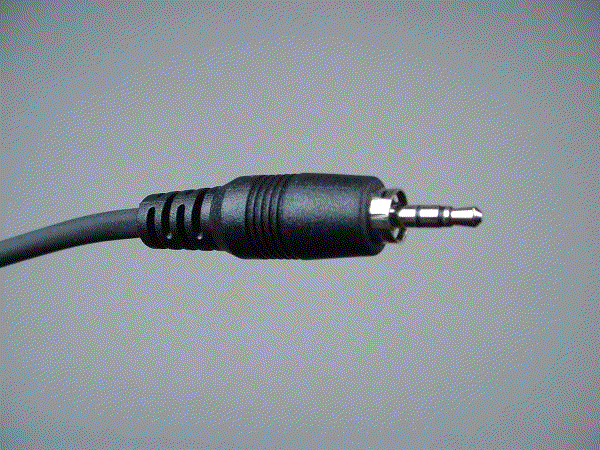

2.5mm Telephone Headset Plug

Compatible with most cellular phones with 2.5mm headset jack. See list at bottom of page. Not compatible with Nokia.

No PTT or COR. Audio Only.

  coming soon

2.5mm Telephone Headset Plug


No PTT or COR. Audio Only.

  Not supported at this time. Ericsson Cellular Phones

iDen is a registered trademark of Motorola

Most cellular phones that have a 2.5mm audio jack (with the exception of Nokia), use a standard 2.5mm TRS audio accesory. The following is a partial list of phones that use this standard.

Audiovox: CDM130   PCX1100XL CDM130XL   CDM135XL MVX440   MVX470 MVX475   MVX480 MVX480XL  MVX485 CDM-8100   CDM-8150 CDM-9100, CDM-9155 CDM-9150x CDM-9155GPX CDM3300  CDM 3300 PCX3500XL  PCX 3500XL CDM4000 CDM4000AT CDM4000BA  CDM4000XL CDM4500  CDM9000 CDM8000XL MVX800 MVX800A  MVX805 MVX850  MVX850A MVX855  MVX855E MVX855XL and others

LG Phone: C1300 DM510 G4010 G4011 G4015 L1150 LG510 LG1010 LG1400 LG5350 LX5500 PM225 TM510 TP1100 VX2000 VX3100 VX3200 VX4400 VX4400B VX4500 VX4600 VX5450 VX6000 VX6100 VX7000 VX8000 VX9000 4NE1 and others

Mitsubishi: T200 T250 T255 T300 G310 G340 and others

Motorola: Nearly all Motorola Cellular and Talkabout Cellular. Too many to list. Includes some older iDen phones with the audio adapter attached to the bottom of the phone.

Panasonic: Allure 320 EB-TX310 Versio 320 EB-TX320

Qualcomm Kyocera: 7135 3250 3245 QCP 3035 2027 2035 2035a 6035 2235 2255 2325 2345

Samsung: Nearly all. Too many to list.

Sanyo: MM-8300 SCP-3000 SCP-4000 SCP-4500 SCP-4700 SCP-4900 SCP-5000 SCP-5150 SCP-6000 SCP-7300 SCP-8100 VM4500 PM-8200 RL-2000 RL-2500 RL-4930 RL-7300 4500 4700 4900 5000 5150 5300 6000 6200 6400 8100, and others

Touchpoint: TP-1100
