Four Connector TypesThis connector spacing is used with many models of portable radio transceiver and consists of a 3.5mm TRS plug and a 2.5mm TRS plug. For many applications, it may matter how the cable is oriented. This is especially true if the radio is going to be worn on the belt, and the cable is to be used with a high noise headset or speaker microphone. The connector can be located on the top or the side of the radio. The orientation of the plug, and the location of controls or the antenna, determine which connector needed. The straight connector is the most versatile choice for networking applications. The other variations are also available, and are useful if you want the cable to be routed a certain way. Routing the cable away from the antenna is always a good idea. If the cable is on the same side as the 3.5mm plug, we call it a right angle connector. If the cable is on the same side as the smaller 2.5mm plug, then we call it a reverse right angle. Strain ReliefIcom has added a 4th variation to this list, the reverse right angel with strain relief. This connector has strain relief screws built into either side, and provides a very secure connection when tightened. The regular plug will work in its place. Two VersionsSelecting the REM cable becomes even more confusing as some of the listed radios require a DC blocking capacitor. As we get more feedback from the field, and test more radios, we will expand the list of confirmed radios. For now, the best solution is to buy one of each style. We offer a discounted pair of straight cables, one with, and one without the blocking capacitor. Our cables are thought to be compatible with all radios listed at the bottom of the page, but it is not possible to test them all. The original REM4467 The REM-4467 and REM-4468 cable has been discontinued. That model had been produced both with and without the capacitor. In order to eliminate the confusion, we no longer offer that model for sale. If you have one of these cables, you may want to check if it has the cap. This is easy to accomplish if you have an ohm meter or a continuity checker. If you measure a short from pin 4 of the RJ45 to the tip of the small plug, then you should mark the cable as a REM4447. If there is no continuity between those two points, then it has the cap, and it should be labeled REM-4457.
|
|
REM-4447 40" Straight Cord
without |
REM4457 40" Straight Cord $55
with |
Straight Connector |
| REM4448 40" Straight Cord $50
without |
REM4458 40" Straight Cord $55
with |
Right Angle Connector |
| REM4449 40" Straight Cord $50
without |
REM4459 40" Straight Cord $55
with |
Reverse Right Angle Connector
|
| REM4450 30" Coiled Cord $90
without |

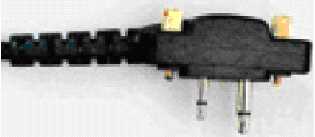

Reverse Right Angle w/Strain Relief Screws
|
| These radios don't require the DC Blocking Cap. Use with REM-4447, REM-4448, REM-4449, REM-4450 Icom F33G/F43G |
| These Radios require the DC Blocking Cap Use with REM-4457, REM-4458, REM-4459
|
| Physically, these radios work with the straight connector Icom: F3/F3S, F4/F4S, F10/20, F40, F40S, H2, H6, J12, M5, U12, U16, V8, T2H, T7H, T90A, W32A/W32E, T22A/T22E/T42A/T42E, 2GXA/2GXE/2GXAT/2GXET, 4GXA/4GXE/4GXAT/4GXET, 4008, 4008M, 4088A Maxon: SP120,SP130,SP140, SL25, SL55 Midland: 70-145, 148, 245, 248, G11, 75-820, 72-822 Premier: PR460, PR160, PR45 Ritron: Patriot Series SST/RTX, Jobcom JMX, MBX, JBS Standard: HX24, HX32, HX300, HX482, HX581, HX583 Vertex: VX500, VX510, VX200 ADI, Alinco, Chief, Rexon, Cobra: PR1000/1200, Microtalk, Marantz Cobra: MicrTALK MT500, MT700 K-PO: BP-1000R Alinco: DJ-446 Alan: HP446, 441, 443, 456R GME: TX6000, TX6200, TX7000 Uniden 040, 042, 044, 050, 052 |
| These radios work with the right angle connector Maxon: 2 pin SL25, SL55, SP120, SP130, SP140, SP5050, CP0510 GE/Ericsson: Monogram MGP300 Lowband Portable Motorola: Talk About (old style with 2 pins), MU, MV21CV Spirit Vertex: VX200 VX500 VX510 |
| These radios work with the reverse right angle
connector
|
These Radios work with the reverse right angle w/strain relief connector.
Icom F3GT, F3GS, F4GT, F4GS, F11, F11S, F14, F14S, F21, F21S, F24, F24S, F33G, F33GT, F33GS, F43G, F43GT, F43GS, F43TR, F3000, F3001, F3002, F3003, F3006, F3008, F3011, F3021T, F3021S, F4001, F4002, F4003, F4006, F4008, F4011, F4021T, F4021S
Same connector as used on the following Icom Speaker Mics / Headsets. |
| The non locking plug can be used with radios that have the
locking capability.
|
